What is the Digital Discovery?

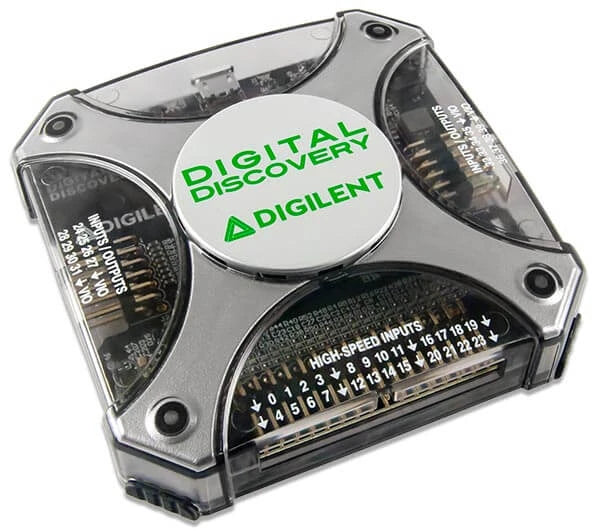

The Digilent Digital Discovery™ is a combined logic analyzer, protocol analyzer, and pattern generator instrument that was created to be the ultimate embedded development companion compatible with a wide variety of digital systems. Digital Discovery was designed to optimize channels, speed, and portability. A small form factor facilitates easy storage and provides a whole suite of advanced features to allow you to debug, visualize, and simulate digital signals for most embedded projects.
Digital Signals Meet Flexibility
Digital signals are prolific in the engineering world making conveniently interpreting and producing digital signals a critical part of the engineers benchtop. Traditional logic analyzers are typically designed for a specific system with set specifications. The Digital Discovery was designed to be the most flexible logic analyzer on the market, able to be reconfigured on the fly at the touch of a button. Test one design with all 32 channels at 3.3 V, then switch to another design requiring the maximum sample rate at the full 800 MS/s and any other logic level between 1.2 V and 3.3 V, all with the same device.
Digital inputs and outputs can be connected to a circuit using simple wire probes or breadboard wires; alternatively, the Digital Discovery High Speed Adapter and impedance-matched probes can be used ensure signal integrity on higher speed signals.
The Digital Discovery is designed for anyone embarking on embedded development; with features and specifications deliberately chosen to maintain a small and portable form factor, withstand use in a variety of environments all powered by our free software, WaveForms.
| Brand | Digital Discovery |
| Product Name | Digital Discovery: Portable USB Logic Analyzer and Digital Pattern Generator |
| Full Specifications | See the Description tab above for complete details, including dimensions, power, and included accessories as listed by the manufacturer. |
| Warranty | Full manufacturer warranty — see product description for term length |
| Country of Assembly | Varies by manufacturer — contact us for specifics |
Before first use: Read the manufacturer's manual and inspect the unit and accessories for shipping damage. Follow any setup or calibration steps listed for this model.
Cleaning: Power off and disconnect from power or remove the battery before cleaning. Wipe the housing with a dry or slightly damp cloth. Avoid solvents, and keep liquids away from ports, screens, and lenses.
Storage: Store in a clean, dry area away from extreme heat, cold, and moisture. Keep batteries and accessories in their original cases when possible.
Questions? Every product includes a manufacturer's manual with model-specific instructions. If yours is missing or you need a replacement, contact us at support@drescott.com and we'll help you out.
Processing: Orders are usually packed within 1-2 business days.
Shipping: Standard delivery typically arrives in 5-10 business days.
Tracking: You'll receive tracking details by email once your order ships.
